Vacuum, 3-STG (LRG-Plastic)

Restore powerful extraction performance with this heavy-duty 120V, 3-stage tangential bypass vacuum motor. Engineered for professional carpet cleaning applications, this motor delivers exceptional water lift and reliable airflow for superior moisture recovery and cleaning efficiency.

The advanced 3-stage fan design produces up to 94 CFM of airflow and 134.1 inches of water lift, providing the strong suction needed for demanding extraction jobs. Its tangential bypass configuration directs exhaust air away from the motor’s electrical components, helping maintain cooler operating temperatures and extending motor life.

Built for durability, this motor features double air-sealed ball bearings that protect against dirt and moisture contamination, along with an epoxy-coated fan housing that resists corrosion and performs reliably in damp, moisture-rich environments.

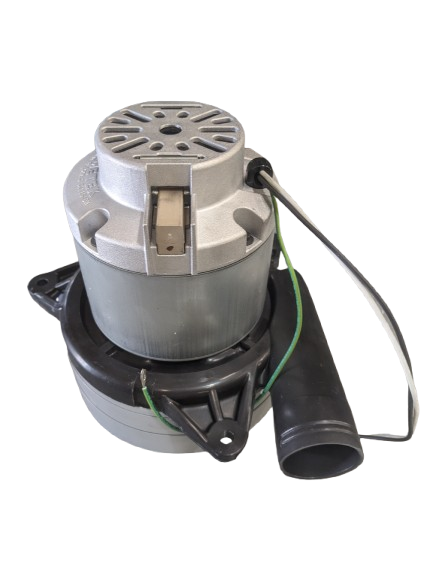

Part#: 355-120 – VACUUM, 3-STG (117507-13) (LRG-PLASTIC)

Features
Heavy-duty 120V, 3-stage tangential bypass vacuum motor
High water lift for powerful extraction performance
Tangential bypass design helps keep motor components cooler
Double air-sealed ball bearings for extended service life
Epoxy-coated housing for added durability and moisture resistance
Designed for demanding professional cleaning applications
Specifications
Voltage: 120V AC
Fan Stages: 3
Maximum Airflow: 94 CFM
Sealed Water Lift: 134.1″ H₂O
Maximum Air Watts: 406
Current Draw: 12.5–13.0 Amps
Motor Diameter: 7.2″

Compatible Equipment
Esteam Ninja 500
Esteam Ninja 500-10
Esteam Defender 500
Esteam Defender 500-10

Benefits
Delivers strong suction and moisture recovery
Helps extend motor life through cooler operation
Resists dirt, moisture, and corrosion
Restores original extractor performance
Built for long-lasting, dependable service
