Description
Frame: Stainless steel, tubular construction
Powerful Performance: 455 CFM for fast drying time, adjustable water pressure for upholstery, carpet, hard surface cleaning and pressure washing
Quiet: ‘Hospital grade’ silencing system
Heating System: Ceramic coated, multi-stage heating system delivers consistent heat

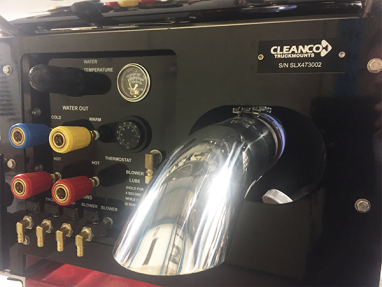

Color Coded Quick Connects: Red (hot), yellow (warm) and blue (cold) quick connects for different water temps
Easy Access: Removable side & top panels for quick access to components, panel mounted engine, blower & pump oil drains for easy servicing and front panel blower lube dispenser
Convenient: Front mounted “Easy Lube” vacuum lube system, front panel oil sights allow easy fluid checks, front mounted oil drain ports for easier maintenance, pre-wired AUX and APO switch
Safety Features: High Temperature Shutdown, Waste Tank Full Shutdown and Oil Sensor Shutdown
Blower: Roots 47 Whispair DSL (dual splash lubricant, no grease fittings), 455 CFM, oil site lines & lube port on front panel
Pump: 3CP Cat Pump with hi-temp seals, clutch activated, 2000 PSI adjustable to 50 PSI, 1650 RPM
Heat Method: Ceramic coated, multi-stage heating system, 235F+ water temperatures

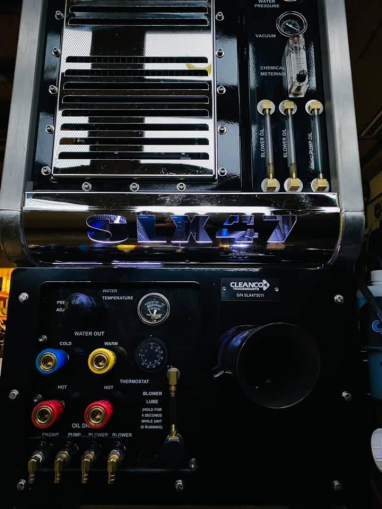

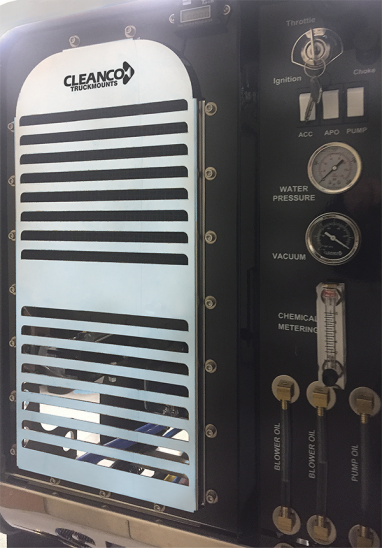

Gauge Package: Vacuum gauge, water pressure gauge, water temperature gauge
Filter System: Twin 2.5″ stainless steel blower protection filters, lift out lint basket
Frame Construction:: Stainless steel tubular frame, powder coded
Waste Tank: 90 gallon powder coated marine aluminum with ‘Flow Max’ unrestricted airflow design
Pre-Wired: For optional APO, AUX switch for interior light package
Freshwater Tank: optional 100 gallon Hydro Well; 125 gallon Aqua Reel Storage tank
Dimensions: 22.5″W × 44.5″D × 47″H in H
Console Weight: 840lbs
- Console with 90 Gallon Waste Tank
- Stainless Steel 1.5″ Truckmount Carpet Wand
- 150 ft x 2″ Vacuum Hose
- 10 ft x 1.5″ Whip Hose
- 150 ft High Temperature Solution Hose
- Chemical Jug & Holder
- Fuel Kits Sold Separately
